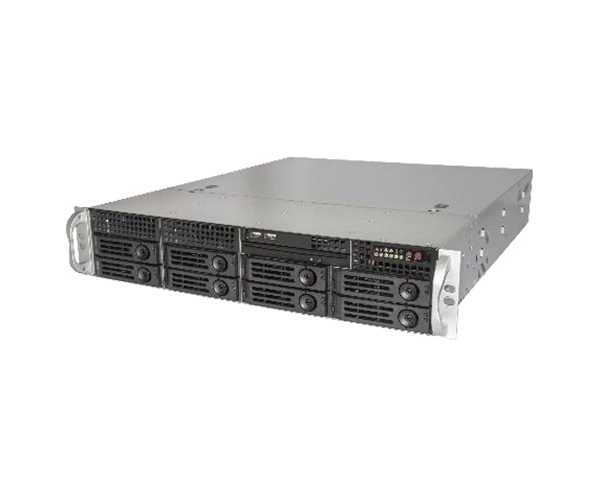

2U 1Way Rack Type Server System
Supreme Computing Performance
Enhanced Memory Performance
8 x 3.5” SAS/SATA Hot-Swap Disk Bays

Computing Power	Powerful computing performance provided by the latest Xeon E2100/E2200, 8th/9th Gen Intel Core i7/i5/i3 series processors
Enhanced Memory Performance	First applied to CPU Integrated memory controller and 1Way server DDR4's powerful memory IO performance.
Internal Storage	8 x SAS2/SATA3 3.5” 6G Hot-Swap disk bay
PCI-Express 3.0	2 PCI-E 3.0 x16 (run at 16/NA or 8/8) 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1
Power Saving Server	500W Single PSU
Type	1 Processor x 1 Node / 2U Rack type Server
Processor	Intel® Xeon® E-2100 / E-2200 Processor Intel® 8th/9th Gen. Core i7/i5/i3 series Single Socket LGA-1151 (Socket H4)
Chipset	Intel C246 Chipset
Memory	Up to 64GB Unbuffered ECC / non-ECC DDR4 2666/2133 MT/s 8 GB, 16GB, 32GB
Memory Slot	Slot: 4ea (2CH)
Video Input	16 Channels
Framerate	1 ~ 30fps
Codec	MJPEG, MJPEG-4, H.264, H.265
Performance	Full-HD, @480fps
PCI slot(s)	2 - PCI-E 3.0 x16 (run at 16/NA or 8/8), 1 - PCI-E 3.0 x4, 1 - PCI-E 3.0 x1 All Low Profile
USB	Rear: 2ea USB 3.1 Gen1 ports, 2 USB 3.1 Gen2 ports (1 Type A + 1 Type C) Front: 2ea USB 2.0 ports
Storage	8 x Hot-Swap SAS2/SATA3 6G 3.5” Disk Bay
Storage Support	Optional LSI SAS Controller Host RAID 0/1 Optional LSI SAS RAID Controller HW RAID 0/1/5/6
Network	2ea Gigabit LAN Ports
Video Output	1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port
PSU	500W Single PSU
Rack Support	Standard Rack Mount Rail Kit
Dimension	89 (H) x 437 (W) x 534 (D) mm, 2U Rackmount

Classification	File name	Attachment	Date
Catalogue	WSER-1186_ENG.pdf Catalogue (301.8K)		2022-01-25 12:30:28
